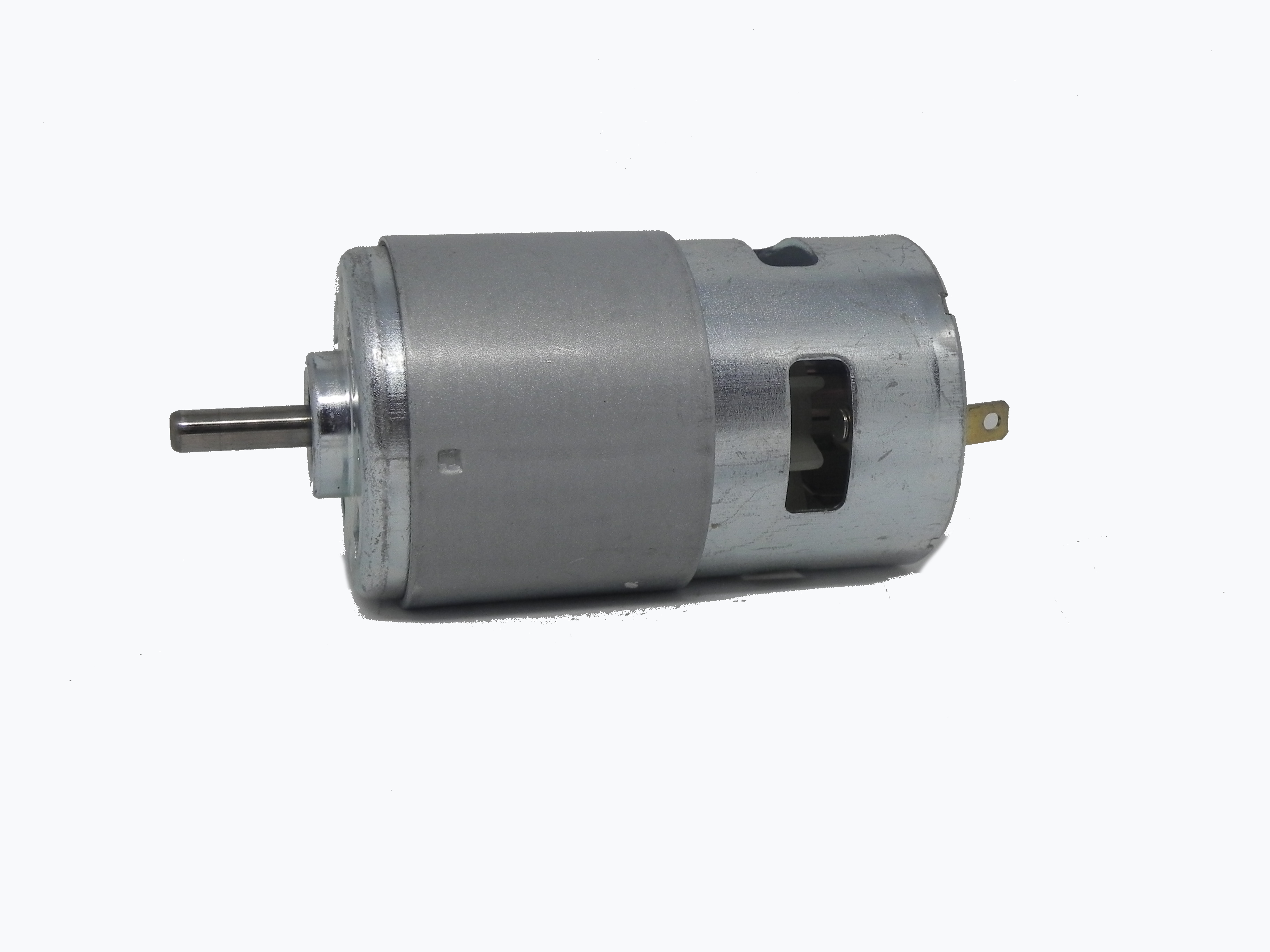

12v 795 10500rpm dc motor

Description

The RS-795 is a high-speed, double-bearing, rated voltage of 12V, with a voltage range of 6-18V.

Size about: diameter 45MM, length 70MM, total length 98MM, shaft diameter 5MM, shaft length 15MM, 374 grams.

Mounting hole distance: 29MM/M4 screw

The following are the no-load speed and current reference values ​​at different voltages.
DC6 V 5400 rpm current 0.5A
DC9 V 7900 rpm current 0.56A
DC12V 10500 rpm current 0.64A
DC15V 13000 rpm current 0.72A
DC18V 15700 rpm current 0.86A
